Сверла DTM3 для обработки отверстий с максимальной глубиной 3xD1

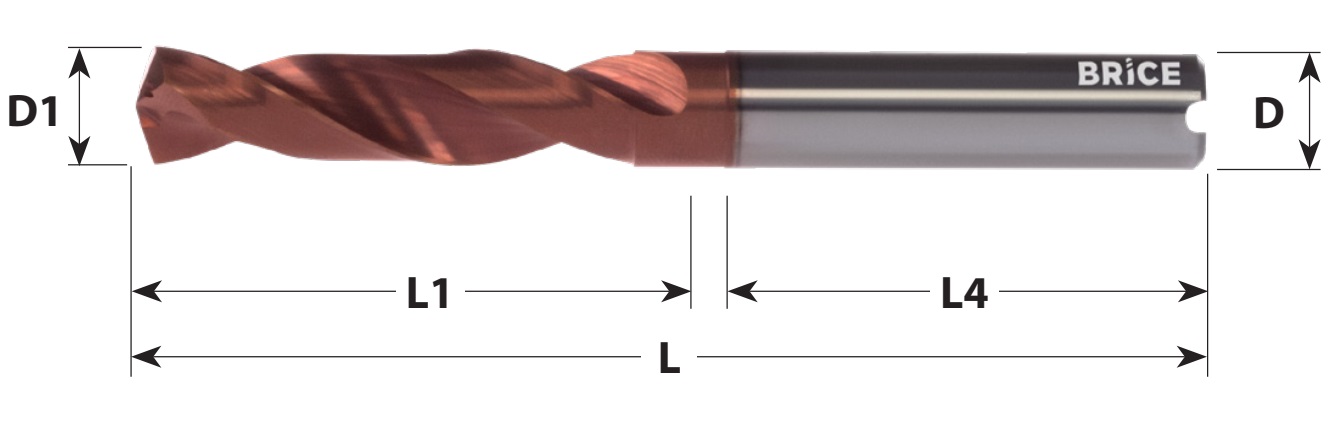

Схема
Описание

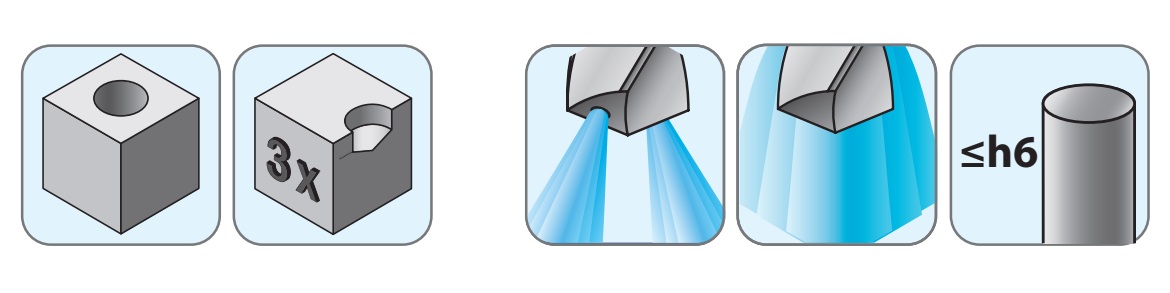

Спиральные сверла для обработки отверстия с максимальной глубиной 3×D1 в материалах групп M и S
• Угол при вершине 140°
• Поле допуска диаметра рабочей части: m7
• Исполнение с хвостовиком типа WELDON или Whistle Notch — по запросу
• Угол при вершине 140°
• Поле допуска диаметра рабочей части: m7
• Исполнение с хвостовиком типа WELDON или Whistle Notch — по запросу
Детализация
Для удобства переверните телефон
|
Без каналов для подачи СОЖ |
С каналами для подачи СОЖ |
Диаметр сверла, мм |
Диаметр хвостовика, мм |
Длина рабочей части, мм |
Длина хвостовика, мм |
Общая длина, мм |
|
| Обозначение | Реестровый номер | Обозначение | D1 | D | L1 | L4 | L |
| DTM3.0300A020.STE | 2913525 | – | 3,00 | 6 | 20 | 36 | 62 |
| DTM3.0310A020.STE | 2913525 | – | 3,10 | 6 | 20 | 36 | 62 |
| DTM3.0320A020.STE | 2913525 | – | 3,20 | 6 | 20 | 36 | 62 |
| DTM3.0330A020.STE | 2913525 | – | 3,30 | 6 | 20 | 36 | 62 |
| DTM3.0340A020.STE | 2913525 | – | 3,40 | 6 | 20 | 36 | 62 |
| DTM3.0350A020.STE | 2913525 | – | 3,50 | 6 | 20 | 36 | 62 |
| DTM3.0360A020.STE | 2913525 | – | 3,60 | 6 | 20 | 36 | 62 |
| DTM3.0370A020.STE | 2913525 | – | 3,70 | 6 | 20 | 36 | 62 |
| DTM3.0380A024.STE | 2913525 | – | 3,80 | 6 | 24 | 36 | 66 |
| DTM3.0390A024.STE | 2913525 | – | 3,90 | 6 | 24 | 36 | 66 |
| DTM3.0400A024.STE | 2913525 | – | 4,00 | 6 | 24 | 36 | 66 |
| DTM3.0410A024.STE | 2913525 | – | 4,10 | 6 | 24 | 36 | 66 |
| DTM3.0420A024.STE | 2913525 | – | 4,20 | 6 | 24 | 36 | 66 |
| DTM3.0430A024.STE | 2913525 | – | 4,30 | 6 | 24 | 36 | 66 |
| DTM3.0440A024.STE | 2913525 | – | 4,40 | 6 | 24 | 36 | 66 |
| DTM3.0450A024.STE | 2913525 | – | 4,50 | 6 | 24 | 36 | 66 |
| DTM3.0460A024.STE | 2913525 | – | 4,60 | 6 | 24 | 36 | 66 |
| DTM3.0465A024.STE | 2913525 | – | 4,65 | 6 | 24 | 36 | 66 |
| DTM3.0470A024.STE | 2913525 | – | 4,70 | 6 | 24 | 36 | 66 |
| DTM3.0480A028.STE | 2913525 | – | 4,80 | 6 | 28 | 36 | 66 |
| DTM3.0490A028.STE | 2913525 | – | 4,90 | 6 | 28 | 36 | 66 |
| DTM3.0500A028.STE | 2913525 | DTM3.0500A028.STK | 5,00 | 6 | 28 | 36 | 66 |
| DTM3.0510A028.STE | 2913525 | DTM3.0510A028.STK | 5,10 | 6 | 28 | 36 | 66 |
| DTM3.0520A028.STE | 2913525 | DTM3.0520A028.STK | 5,20 | 6 | 28 | 36 | 66 |
| DTM3.0530A028.STE | 2913525 | DTM3.0530A028.STK | 5,30 | 6 | 28 | 36 | 66 |
| DTM3.0540A028.STE | 2913525 | DTM3.0540A028.STK | 5,40 | 6 | 28 | 36 | 66 |
| DTM3.0550A028.STE | 2913525 | DTM3.0550A028.STK | 5,50 | 6 | 28 | 36 | 66 |
| DTM3.0555A028.STE | 2913525 | DTM3.0555A028.STK | 5,55 | 6 | 28 | 36 | 66 |
| DTM3.0560A028.STE | 2913525 | DTM3.0560A028.STK | 5,60 | 6 | 28 | 36 | 66 |
| DTM3.0570A028.STE | 2913525 | DTM3.0570A028.STK | 5,70 | 6 | 28 | 36 | 66 |
| DTM3.0580A028.STE | 2913525 | DTM3.0580A028.STK | 5,80 | 6 | 28 | 36 | 66 |
| DTM3.0590A028.STE | 2913525 | DTM3.0590A028.STK | 5,90 | 6 | 28 | 36 | 66 |
| DTM3.0600A028.STE | 2913525 | DTM3.0600A028.STK | 6,00 | 6 | 28 | 36 | 66 |
| DTM3.0610A034.STE | 2913525 | DTM3.0610A034.STK | 6,10 | 8 | 34 | 36 | 79 |
| DTM3.0620A034.STE | 2913525 | DTM3.0620A034.STK | 6,20 | 8 | 34 | 36 | 79 |
| DTM3.0630A034.STE | 2913525 | DTM3.0630A034.STK | 6,30 | 8 | 34 | 36 | 79 |
| DTM3.0640A034.STE | 2913525 | DTM3.0640A034.STK | 6,40 | 8 | 34 | 36 | 79 |
| DTM3.0650A034.STE | 2913525 | DTM3.0650A034.STK | 6,50 | 8 | 34 | 36 | 79 |
| DTM3.0660A034.STE | 2913525 | DTM3.0660A034.STK | 6,60 | 8 | 34 | 36 | 79 |
| DTM3.0670A034.STE | 2913525 | DTM3.0670A034.STK | 6,70 | 8 | 34 | 36 | 79 |
| DTM3.0680A034.STE | 2913525 | DTM3.0680A034.STK | 6,80 | 8 | 34 | 36 | 79 |
| DTM3.0690A034.STE | 2913525 | DTM3.0690A034.STK | 6,90 | 8 | 34 | 36 | 79 |
| DTM3.0700A034.STE | 2913525 | DTM3.0700A034.STK | 7,00 | 8 | 34 | 36 | 79 |
| DTM3.0710A041.STE | 2913525 | DTM3.0710A041.STK | 7,10 | 8 | 41 | 36 | 79 |
| DTM3.0720A041.STE | 2913525 | DTM3.0720A041.STK | 7,20 | 8 | 41 | 36 | 79 |
| DTM3.0730A041.STE | 2913525 | DTM3.0730A041.STK | 7,30 | 8 | 41 | 36 | 79 |
| DTM3.0740A041.STE | 2913525 | DTM3.0740A041.STK | 7,40 | 8 | 41 | 36 | 79 |
| DTM3.0750A041.STE | 2913525 | DTM3.0750A041.STK | 7,50 | 8 | 41 | 36 | 79 |
| DTM3.0760A041.STE | 2913525 | DTM3.0760A041.STK | 7,60 | 8 | 41 | 36 | 79 |
| DTM3.0770A041.STE | 2913525 | DTM3.0770A041.STK | 7,70 | 8 | 41 | 36 | 79 |
| DTM3.0780A041.STE | 2913525 | DTM3.0780A041.STK | 7,80 | 8 | 41 | 36 | 79 |
| DTM3.0790A041.STE | 2913525 | DTM3.0790A041.STK | 7,90 | 8 | 41 | 36 | 79 |
| DTM3.0800A041.STE | 2913525 | DTM3.0800A041.STK | 8,00 | 8 | 41 | 36 | 79 |
| DTM3.0810A047.STE | 2913525 | DTM3.0810A047.STK | 8,10 | 10 | 47 | 40 | 89 |
| DTM3.0820A047.STE | 2913525 | DTM3.0820A047.STK | 8,20 | 10 | 47 | 40 | 89 |
| DTM3.0830A047.STE | 2913525 | DTM3.0830A047.STK | 8,30 | 10 | 47 | 40 | 89 |
| DTM3.0840A047.STE | 2913525 | DTM3.0840A047.STK | 8,40 | 10 | 47 | 40 | 89 |
| DTM3.0850A047.STE | 2913525 | DTM3.0850A047.STK | 8,50 | 10 | 47 | 40 | 89 |
| DTM3.0860A047.STE | 2913525 | DTM3.0860A047.STK | 8,60 | 10 | 47 | 40 | 89 |
| DTM3.0870A047.STE | 2913525 | DTM3.0870A047.STK | 8,70 | 10 | 47 | 40 | 89 |
| DTM3.0880A047.STE | 2913525 | DTM3.0880A047.STK | 8,80 | 10 | 47 | 40 | 89 |
| DTM3.0890A047.STE | 2913525 | DTM3.0890A047.STK | 8,90 | 10 | 47 | 40 | 89 |
| DTM3.0900A047.STE | 2913525 | DTM3.0900A047.STK | 9,00 | 10 | 47 | 40 | 89 |
| DTM3.0910A047.STE | 2913525 | DTM3.0910A047.STK | 9,10 | 10 | 47 | 40 | 89 |
| DTM3.0920A047.STE | 2913525 | DTM3.0920A047.STK | 9,20 | 10 | 47 | 40 | 89 |
| DTM3.0930A047.STE | 2913525 | DTM3.0930A047.STK | 9,30 | 10 | 47 | 40 | 89 |
| DTM3.0940A047.STE | 2913525 | DTM3.0940A047.STK | 9,40 | 10 | 47 | 40 | 89 |
| DTM3.0950A047.STE | 2913525 | DTM3.0950A047.STK | 9,50 | 10 | 47 | 40 | 89 |
| DTM3.0960A047.STE | 2913525 | DTM3.0960A047.STK | 9,60 | 10 | 47 | 40 | 89 |
| DTM3.0970A047.STE | 2913525 | DTM3.0970A047.STK | 9,70 | 10 | 47 | 40 | 89 |
| DTM3.0980A047.STE | 2913525 | DTM3.0980A047.STK | 9,80 | 10 | 47 | 40 | 89 |
| DTM3.0990A047.STE | 2913525 | DTM3.0990A047.STK | 9,90 | 10 | 47 | 40 | 89 |
| DTM3.1000A047.STE | 2913525 | DTM3.1000A047.STK | 10,00 | 10 | 47 | 40 | 89 |
| DTM3.1010A055.STE | 2913525 | DTM3.1010A055.STK | 10,10 | 12 | 55 | 45 | 102 |
| DTM3.1020A055.STE | 2913525 | DTM3.1020A055.STK | 10,20 | 12 | 55 | 45 | 102 |
| DTM3.1030A055.STE | 2913525 | DTM3.1030A055.STK | 10,30 | 12 | 55 | 45 | 102 |
| DTM3.1040A055.STE | 2913525 | DTM3.1040A055.STK | 10,40 | 12 | 55 | 45 | 102 |
| DTM3.1050A055.STE | 2913525 | DTM3.1050A055.STK | 10,50 | 12 | 55 | 45 | 102 |
| DTM3.1060A055.STE | 2913525 | DTM3.1060A055.STK | 10,60 | 12 | 55 | 45 | 102 |
| DTM3.1070A055.STE | 2913525 | DTM3.1070A055.STK | 10,70 | 12 | 55 | 45 | 102 |
| DTM3.1080A055.STE | 2913525 | DTM3.1080A055.STK | 10,80 | 12 | 55 | 45 | 102 |
| DTM3.1090A055.STE | 2913525 | DTM3.1090A055.STK | 10,90 | 12 | 55 | 45 | 102 |
| DTM3.1100A055.STE | 2913525 | DTM3.1100A055.STK | 11,00 | 12 | 55 | 45 | 102 |
| DTM3.1110A055.STE | 2913525 | DTM3.1110A055.STK | 11,10 | 12 | 55 | 45 | 102 |
| DTM3.1120A055.STE | 2913525 | DTM3.1120A055.STK | 11,20 | 12 | 55 | 45 | 102 |
| DTM3.1130A055.STE | 2913525 | DTM3.1130A055.STK | 11,30 | 12 | 55 | 45 | 102 |
| DTM3.1140A055.STE | 2913525 | DTM3.1140A055.STK | 11,40 | 12 | 55 | 45 | 102 |
| DTM3.1150A055.STE | 2913525 | DTM3.1150A055.STK | 11,50 | 12 | 55 | 45 | 102 |
| DTM3.1160A055.STE | 2913525 | DTM3.1160A055.STK | 11,60 | 12 | 55 | 45 | 102 |
| DTM3.1170A055.STE | 2913525 | DTM3.1170A055.STK | 11,70 | 12 | 55 | 45 | 102 |
| DTM3.1180A055.STE | 2913525 | DTM3.1180A055.STK | 11,80 | 12 | 55 | 45 | 102 |
| DTM3.1190A055.STE | 2913525 | DTM3.1190A055.STK | 11,90 | 12 | 55 | 45 | 102 |
| DTM3.1200A055.STE | 2913525 | DTM3.1200A055.STK | 12,00 | 12 | 55 | 45 | 102 |
| DTM3.1220A060.STE | 2913525 | DTM3.1220A060.STK | 12,20 | 14 | 60 | 45 | 107 |
| DTM3.1250A060.STE | 2913525 | DTM3.1250A060.STK | 12,50 | 14 | 60 | 45 | 107 |
| DTM3.1270A060.STE | 2913525 | DTM3.1270A060.STK | 12,70 | 14 | 60 | 45 | 107 |
| DTM3.1280A060.STE | 2913525 | DTM3.1280A060.STK | 12,80 | 14 | 60 | 45 | 107 |
| DTM3.1300A060.STE | 2913525 | DTM3.1300A060.STK | 13,00 | 14 | 60 | 45 | 107 |
| DTM3.1330A060.STE | 2913525 | DTM3.1330A060.STK | 13,30 | 14 | 60 | 45 | 107 |
| DTM3.1350A060.STE | 2913525 | DTM3.1350A060.STK | 13,50 | 14 | 60 | 45 | 107 |
| DTM3.1370A060.STE | 2913525 | DTM3.1370A060.STK | 13,70 | 14 | 60 | 45 | 107 |
| DTM3.1400A060.STE | 2913525 | DTM3.1400A060.STK | 14,00 | 14 | 60 | 45 | 107 |
| DTM3.1420A065.STE | 2913525 | DTM3.1420A065.STK | 14,20 | 16 | 65 | 48 | 115 |
| DTM3.1430A065.STE | 2913525 | DTM3.1430A065.STK | 14,30 | 16 | 65 | 48 | 115 |
| DTM3.1450A065.STE | 2913525 | DTM3.1450A065.STK | 14,50 | 16 | 65 | 48 | 115 |
| DTM3.1470A065.STE | 2913525 | DTM3.1470A065.STK | 14,70 | 16 | 65 | 48 | |
