Сверла DTP5 для обработки отверстий с максимальной глубиной 5xD1

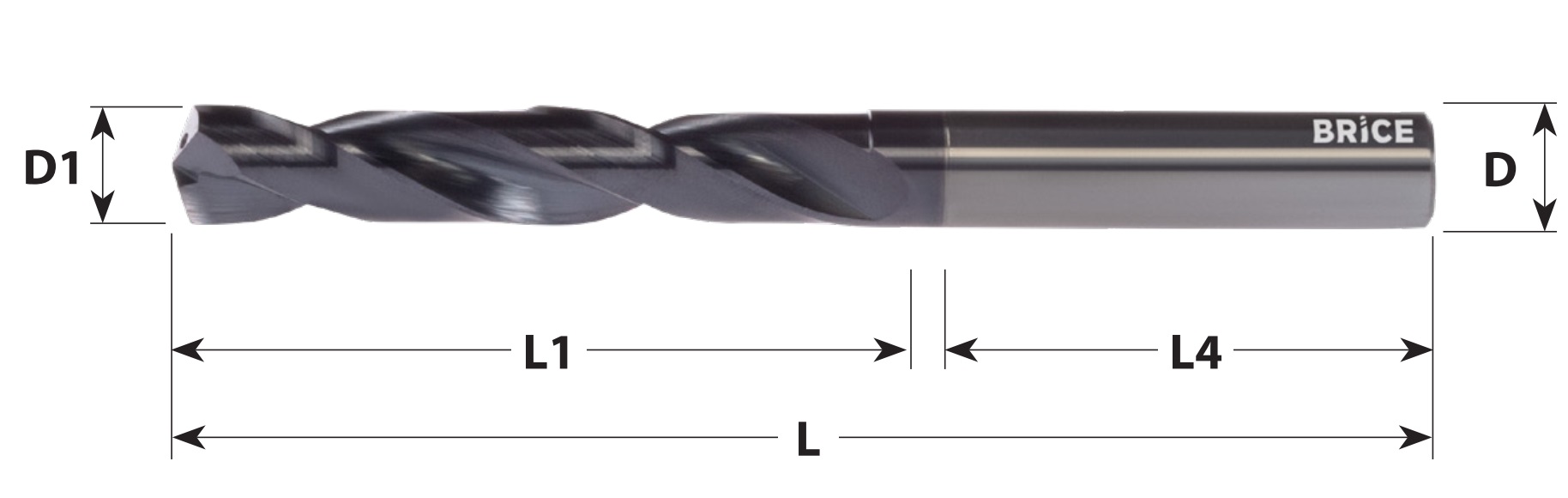

Схема
Описание

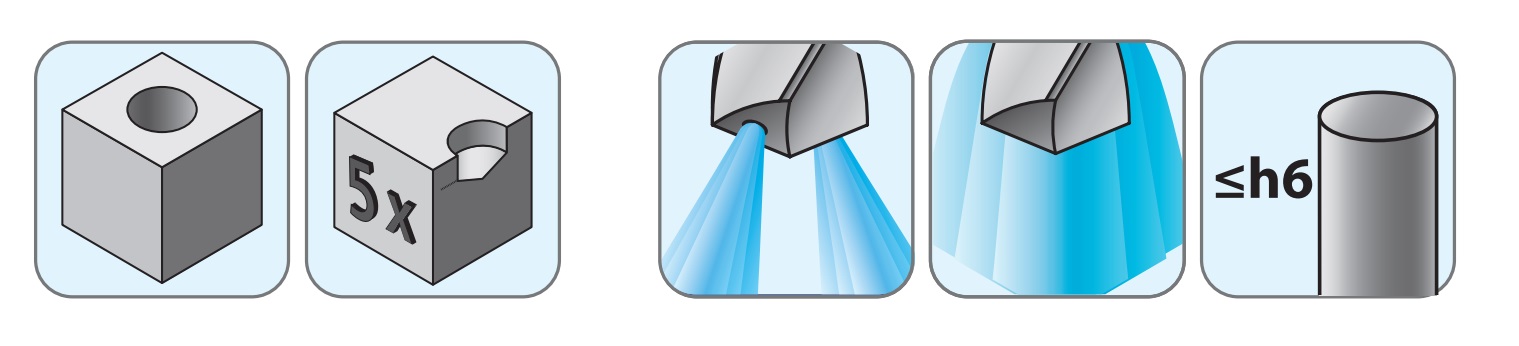

Спиральные сверла для обработки отверстий с максимальной глубиной 5×D1 в материалах групп P и K
• Угол при вершине 140°
• Поле допуска диаметра рабочей части: m7
• Исполнение с хвостовиком типа WELDON или Whistle Notch — по запросу
• Угол при вершине 140°
• Поле допуска диаметра рабочей части: m7
• Исполнение с хвостовиком типа WELDON или Whistle Notch — по запросу
Детализация
Для удобства переверните телефон
|
Без каналов для подачи СОЖ |
С каналами для подачи СОЖ |
Диаметр сверла, мм |
Диаметр хвостовика, мм |
Длина рабочей части, мм |
Длина хвостовика, мм |
Общая длина, мм |
|
| Обозначение | Реестровый номер | Обозначение | D1 | D | L1 | L4 | L |
| DTP5.0300A028.STE | 2913517 | – | 3,00 | 6 | 28 | 36 | 66 |
| DTP5.0310A028.STE | 2913517 | – | 3,10 | 6 | 28 | 36 | 66 |
| DTP5.0320A028.STE | 2913517 | – | 3,20 | 6 | 28 | 36 | 66 |
| DTP5.0330A028.STE | 2913517 | – | 3,30 | 6 | 28 | 36 | 66 |
| DTP5.0340A028.STE | 2913517 | – | 3,40 | 6 | 28 | 36 | 66 |
| DTP5.0350A028.STE | 2913517 | – | 3,50 | 6 | 28 | 36 | 66 |
| DTP5.0360A028.STE | 2913517 | – | 3,60 | 6 | 28 | 36 | 66 |
| DTP5.0370A028.STE | 2913517 | – | 3,70 | 6 | 28 | 36 | 66 |
| DTP5.0380A036.STE | 2913517 | – | 3,80 | 6 | 36 | 36 | 74 |
| DTP5.0390A036.STE | 2913517 | – | 3,90 | 6 | 36 | 36 | 74 |
| DTP5.0400A036.STE | 2913517 | – | 4,00 | 6 | 36 | 36 | 74 |
| DTP5.0410A036.STE | 2913517 | – | 4,10 | 6 | 36 | 36 | 74 |
| DTP5.0420A036.STE | 2913517 | – | 4,20 | 6 | 36 | 36 | 74 |
| DTP5.0430A036.STE | 2913517 | – | 4,30 | 6 | 36 | 36 | 74 |
| DTP5.0440A036.STE | 2913517 | – | 4,40 | 6 | 36 | 36 | 74 |
| DTP5.0450A036.STE | 2913517 | – | 4,50 | 6 | 36 | 36 | 74 |
| DTP5.0460A036.STE | 2913517 | – | 4,60 | 6 | 36 | 36 | 74 |
| DTP5.0465A036.STE | 2913517 | – | 4,65 | 6 | 36 | 36 | 74 |
| DTP5.0470A036.STE | 2913517 | – | 4,70 | 6 | 36 | 36 | 74 |
| DTP5.0480A044.STE | 2913517 | – | 4,80 | 6 | 44 | 36 | 82 |
| DTP5.0490A044.STE | 2913517 | – | 4,90 | 6 | 44 | 36 | 82 |
| DTP5.0500A044.STE | 2913517 | DTP5.0500A044.STK | 5,00 | 6 | 44 | 36 | 82 |
| DTP5.0510A044.STE | 2913517 | DTP5.0510A044.STK | 5,10 | 6 | 44 | 36 | 82 |
| DTP5.0520A044.STE | 2913517 | DTP5.0520A044.STK | 5,20 | 6 | 44 | 36 | 82 |
| DTP5.0530A044.STE | 2913517 | DTP5.0530A044.STK | 5,30 | 6 | 44 | 36 | 82 |
| DTP5.0540A044.STE | 2913517 | DTP5.0540A044.STK | 5,40 | 6 | 44 | 36 | 82 |
| DTP5.0550A044.STE | 2913517 | DTP5.0550A044.STK | 5,50 | 6 | 44 | 36 | 82 |
| DTP5.0555A044.STE | 2913517 | DTP5.0555A044.STK | 5,55 | 6 | 44 | 36 | 82 |
| DTP5.0560A044.STE | 2913517 | DTP5.0560A044.STK | 5,60 | 6 | 44 | 36 | 82 |
| DTP5.0570A044.STE | 2913517 | DTP5.0570A044.STK | 5,70 | 6 | 44 | 36 | 82 |
| DTP5.0580A044.STE | 2913517 | DTP5.0580A044.STK | 5,80 | 6 | 44 | 36 | 82 |
| DTP5.0590A044.STE | 2913517 | DTP5.0590A044.STK | 5,90 | 6 | 44 | 36 | 82 |
| DTP5.0600A044.STE | 2913517 | DTP5.0600A044.STK | 6,00 | 6 | 44 | 36 | 82 |
| DTP5.0610A053.STE | 2913517 | DTP5.0610A053.STK | 6,10 | 8 | 53 | 36 | 91 |
| DTP5.0620A053.STE | 2913517 | DTP5.0620A053.STK | 6,20 | 8 | 53 | 36 | 91 |
| DTP5.0630A053.STE | 2913517 | DTP5.0630A053.STK | 6,30 | 8 | 53 | 36 | 91 |
| DTP5.0640A053.STE | 2913517 | DTP5.0640A053.STK | 6,40 | 8 | 53 | 36 | 91 |
| DTP5.0650A053.STE | 2913517 | DTP5.0650A053.STK | 6,50 | 8 | 53 | 36 | 91 |
| DTP5.0660A053.STE | 2913517 | DTP5.0660A053.STK | 6,60 | 8 | 53 | 36 | 91 |
| DTP5.0670A053.STE | 2913517 | DTP5.0670A053.STK | 6,70 | 8 | 53 | 36 | 91 |
| DTP5.0680A053.STE | 2913517 | DTP5.0680A053.STK | 6,80 | 8 | 53 | 36 | 91 |
| DTP5.0690A053.STE | 2913517 | DTP5.0690A053.STK | 6,90 | 8 | 53 | 36 | 91 |
| DTP5.0700A053.STE | 2913517 | DTP5.0700A053.STK | 7,00 | 8 | 53 | 36 | 91 |
| DTP5.0710A053.STE | 2913517 | DTP5.0710A053.STK | 7,10 | 8 | 53 | 36 | 91 |
| DTP5.0720A053.STE | 2913517 | DTP5.0720A053.STK | 7,20 | 8 | 53 | 36 | 91 |
| DTP5.0730A053.STE | 2913517 | DTP5.0730A053.STK | 7,30 | 8 | 53 | 36 | 91 |
| DTP5.0740A053.STE | 2913517 | DTP5.0740A053.STK | 7,40 | 8 | 53 | 36 | 91 |
| DTP5.0750A053.STE | 2913517 | DTP5.0750A053.STK | 7,50 | 8 | 53 | 36 | 91 |
| DTP5.0760A053.STE | 2913517 | DTP5.0760A053.STK | 7,60 | 8 | 53 | 36 | 91 |
| DTP5.0770A053.STE | 2913517 | DTP5.0770A053.STK | 7,70 | 8 | 53 | 36 | 91 |
| DTP5.0780A053.STE | 2913517 | DTP5.0780A053.STK | 7,80 | 8 | 53 | 36 | 91 |
| DTP5.0790A053.STE | 2913517 | DTP5.0790A053.STK | 7,90 | 8 | 53 | 36 | 91 |
| DTP5.0800A053.STE | 2913517 | DTP5.0800A053.STK | 8,00 | 8 | 53 | 36 | 91 |
| DTP5.0810A061.STE | 2913517 | DTP5.0810A061.STK | 8,10 | 10 | 61 | 40 | 103 |
| DTP5.0820A061.STE | 2913517 | DTP5.0820A061.STK | 8,20 | 10 | 61 | 40 | 103 |
| DTP5.0830A061.STE | 2913517 | DTP5.0830A061.STK | 8,30 | 10 | 61 | 40 | 103 |
| DTP5.0840A061.STE | 2913517 | DTP5.0840A061.STK | 8,40 | 10 | 61 | 40 | 103 |
| DTP5.0850A061.STE | 2913517 | DTP5.0850A061.STK | 8,50 | 10 | 61 | 40 | 103 |
| DTP5.0860A061.STE | 2913517 | DTP5.0860A061.STK | 8,60 | 10 | 61 | 40 | 103 |
| DTP5.0870A061.STE | 2913517 | DTP5.0870A061.STK | 8,70 | 10 | 61 | 40 | 103 |
| DTP5.0880A061.STE | 2913517 | DTP5.0880A061.STK | 8,80 | 10 | 61 | 40 | 103 |
| DTP5.0890A061.STE | 2913517 | DTP5.0890A061.STK | 8,90 | 10 | 61 | 40 | 103 |
| DTP5.0900A061.STE | 2913517 | DTP5.0900A061.STK | 9,00 | 10 | 61 | 40 | 103 |
| DTP5.0910A061.STE | 2913517 | DTP5.0910A061.STK | 9,10 | 10 | 61 | 40 | 103 |
| DTP5.0920A061.STE | 2913517 | DTP5.0920A061.STK | 9,20 | 10 | 61 | 40 | 103 |
| DTP5.0925A061.STE | 2913517 | DTP5.0925A061.STK | 9,25 | 10 | 61 | 40 | 103 |
| DTP5.0930A061.STE | 2913517 | DTP5.0930A061.STK | 9,30 | 10 | 61 | 40 | 103 |
| DTP5.0940A061.STE | 2913517 | DTP5.0940A061.STK | 9,40 | 10 | 61 | 40 | 103 |
| DTP5.0950A061.STE | 2913517 | DTP5.0950A061.STK | 9,50 | 10 | 61 | 40 | 103 |
| DTP5.0960A061.STE | 2913517 | DTP5.0960A061.STK | 9,60 | 10 | 61 | 40 | 103 |
| DTP5.0970A061.STE | 2913517 | DTP5.0970A061.STK | 9,70 | 10 | 61 | 40 | 103 |
| DTP5.0980A061.STE | 2913517 | DTP5.0980A061.STK | 9,80 | 10 | 61 | 40 | 103 |
| DTP5.0990A061.STE | 2913517 | DTP5.0990A061.STK | 9,90 | 10 | 61 | 40 | 103 |
| DTP5.0992A061.STE | 2913517 | DTP5.0992A061.STK | 9,92 | 10 | 61 | 40 | 103 |
| DTP5.1000A061.STE | 2913517 | DTP5.1000A061.STK | 10,00 | 10 | 61 | 40 | 103 |
| DTP5.1010A071.STE | 2913517 | DTP5.1010A071.STK | 10,10 | 12 | 71 | 45 | 118 |
| DTP5.1020A071.STE | 2913517 | DTP5.1020A071.STK | 10,20 | 12 | 71 | 45 | 118 |
| DTP5.1030A071.STE | 2913517 | DTP5.1030A071.STK | 10,30 | 12 | 71 | 45 | 118 |
| DTP5.1040A071.STE | 2913517 | DTP5.1040A071.STK | 10,40 | 12 | 71 | 45 | 118 |
| DTP5.1050A071.STE | 2913517 | DTP5.1050A071.STK | 10,50 | 12 | 71 | 45 | 118 |
| DTP5.1060A071.STE | 2913517 | DTP5.1060A071.STK | 10,60 | 12 | 71 | 45 | 118 |
| DTP5.1070A071.STE | 2913517 | DTP5.1070A071.STK | 10,70 | 12 | 71 | 45 | 118 |
| DTP5.1080A071.STE | 2913517 | DTP5.1080A071.STK | 10,80 | 12 | 71 | 45 | 118 |
| DTP5.1090A071.STE | 2913517 | DTP5.1090A071.STK | 10,90 | 12 | 71 | 45 | 118 |
| DTP5.1100A071.STE | 2913517 | DTP5.1100A071.STK | 11,00 | 12 | 71 | 45 | 118 |
| DTP5.1110A071.STE | 2913517 | DTP5.1110A071.STK | 11,10 | 12 | 71 | 45 | 118 |
| DTP5.1120A071.STE | 2913517 | DTP5.1120A071.STK | 11,20 | 12 | 71 | 45 | 118 |
| DTP5.1130A071.STE | 2913517 | DTP5.1130A071.STK | 11,30 | 12 | 71 | 45 | 118 |
| DTP5.1140A071.STE | 2913517 | DTP5.1140A071.STK | 11,40 | 12 | 71 | 45 | 118 |
| DTP5.1150A071.STE | 2913517 | DTP5.1150A071.STK | 11,50 | 12 | 71 | 45 | 118 |
| DTP5.1160A071.STE | 2913517 | DTP5.1160A071.STK | 11,60 | 12 | 71 | 45 | 118 |
| DTP5.1170A071.STE | 2913517 | DTP5.1170A071.STK | 11,70 | 12 | 71 | 45 | 118 |
| DTP5.1180A071.STE | 2913517 | DTP5.1180A071.STK | 11,80 | 12 | 71 | 45 | 118 |
| DTP5.1190A071.STE | 2913517 | DTP5.1190A071.STK | 11,90 | 12 | 71 | 45 | 118 |
| DTP5.1200A071.STE | 2913517 | DTP5.1200A071.STK | 12,00 | 12 | 71 | 45 | 118 |
| DTP5.1210A077.STE | 2913517 | DTP5.1210A077.STK | 12,10 | 14 | 77 | 45 | 124 |
| DTP5.1220A077.STE | 2913517 | DTP5.1220A077.STK | 12,20 | 14 | 77 | 45 | 124 |
| DTP5.1230A077.STE | 2913517 | DTP5.1230A077.STK | 12,30 | 14 | 77 | 45 | 124 |
| DTP5.1240A077.STE | 2913517 | DTP5.1240A077.STK | 12,40 | 14 | 77 | 45 | 124 |
| DTP5.1250A077.STE | 2913517 | DTP5.1250A077.STK | 12,50 | 14 | 77 | 45 | 124 |
| DTP5.1270A077.STE | 2913517 | DTP5.1270A077.STK | 12,70 | 14 | 77 | 45 | 124 |
| DTP5.1300A077.STE | 2913517 | DTP5.1300A077.STK | 13,00 | 14 | 77 | 45 | 124 |
| DTP5.1350A077.STE | 2913517 | DTP5.1350A077.STK | 13,50 | 14 | 77 | 45 | 124 |
| DTP5.1370A077.STE | 2913517 | DTP5.1370A077.STK | 13,70 | 14 | 77 | 45 | 124 |
| DTP5.1380A077.STE | 2913517 | DTP5.1380A077.STK | 13,80 | 14 | 77 | 45 | 124 |
| DTP5.1390A077.STE | 2913517 | DTP5.1390A077.STK | 13,90 | 14 | 77 | 45 | |
