Сверла DTN7 для обработки отверстий с максимальной глубиной 7xD1
Схема
Описание

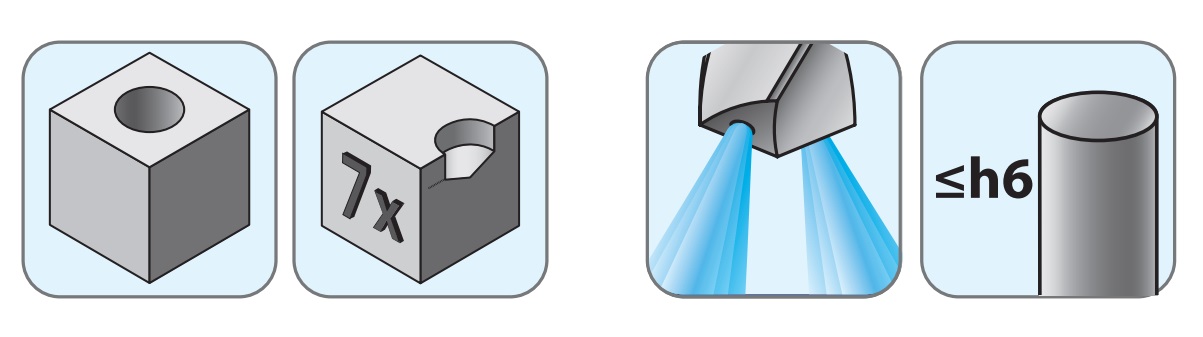

Спиральные сверла для обработки отверстий с максимальной глубиной 7×D1 в материалах группы N
• Угол при вершине 140°
• Поле допуска диаметра рабочей части: m7
• Исполнение с хвостовиком типа WELDON или Whistle Notch — по запросу
• Угол при вершине 140°
• Поле допуска диаметра рабочей части: m7
• Исполнение с хвостовиком типа WELDON или Whistle Notch — по запросу
Детализация
Для удобства переверните телефон
|
Без каналов для подачи СОЖ |
С каналами для подачи СОЖ |
Диаметр сверла, мм |
Диаметр хвостовика, мм |
Длина рабочей части, мм |
Длина хвостовика, мм |
Общая длина, мм |
|
| Обозначение | Реестровый номер | Обозначение | D1 | D | L1 | L4 | L |
| DTN7.0500A050.SPE | 3047816 | DTN7.0500A050.SPK | 5,00 | 6 | 50 | 36 | 90 |
| DTN7.0510A050.SPE | 3047816 | DTN7.0510A050.SPK | 5,10 | 6 | 50 | 36 | 90 |
| DTN7.0520A050.SPE | 3047816 | DTN7.0520A050.SPK | 5,20 | 6 | 50 | 36 | 90 |
| DTN7.0530A050.SPE | 3047816 | DTN7.0530A050.SPK | 5,30 | 6 | 50 | 36 | 90 |
| DTN7.0540A057.SPE | 3047816 | DTN7.0540A057.SPK | 5,40 | 6 | 57 | 36 | 97 |
| DTN7.0550A057.SPE | 3047816 | DTN7.0550A057.SPK | 5,50 | 6 | 57 | 36 | 97 |
| DTN7.0570A057.SPE | 3047816 | DTN7.0570A057.SPK | 5,70 | 6 | 57 | 36 | 97 |
| DTN7.0580A057.SPE | 3047816 | DTN7.0580A057.SPK | 5,80 | 6 | 57 | 36 | 97 |
| DTN7.0590A057.SPE | 3047816 | DTN7.0590A057.SPK | 5,90 | 6 | 57 | 36 | 97 |
| DTN7.0600A057.SPE | 3047816 | DTN7.0600A057.SPK | 6,00 | 6 | 57 | 36 | 97 |
| DTN7.0610A066.SPE | 3047816 | DTN7.0610A066.SPK | 6,10 | 8 | 66 | 36 | 106 |
| DTN7.0620A066.SPE | 3047816 | DTN7.0620A066.SPK | 6,20 | 8 | 66 | 36 | 106 |
| DTN7.0630A066.SPE | 3047816 | DTN7.0630A066.SPK | 6,30 | 8 | 66 | 36 | 106 |
| DTN7.0650A066.SPE | 3047816 | DTN7.0650A066.SPK | 6,50 | 8 | 66 | 36 | 106 |
| DTN7.0660A066.SPE | 3047816 | DTN7.0660A066.SPK | 6,60 | 8 | 66 | 36 | 106 |
| DTN7.0670A066.SPE | 3047816 | DTN7.0670A066.SPK | 6,70 | 8 | 66 | 36 | 106 |
| DTN7.0680A066.SPE | 3047816 | DTN7.0680A066.SPK | 6,80 | 8 | 66 | 36 | 106 |
| DTN7.0690A076.SPE | 3047816 | DTN7.0690A076.SPK | 6,90 | 8 | 76 | 36 | 116 |
| DTN7.0700A076.SPE | 3047816 | DTN7.0700A076.SPK | 7,00 | 8 | 76 | 36 | 116 |
| DTN7.0710A076.SPE | 3047816 | DTN7.0710A076.SPK | 7,10 | 8 | 76 | 36 | 116 |
| DTN7.0720A076.SPE | 3047816 | DTN7.0720A076.SPK | 7,20 | 8 | 76 | 36 | 116 |
| DTN7.0750A076.SPE | 3047816 | DTN7.0750A076.SPK | 7,50 | 8 | 76 | 36 | 116 |
| DTN7.0760A076.SPE | 3047816 | DTN7.0760A076.SPK | 7,60 | 8 | 76 | 36 | 116 |
| DTN7.0770A076.SPE | 3047816 | DTN7.0770A076.SPK | 7,70 | 8 | 76 | 36 | 116 |
| DTN7.0780A076.SPE | 3047816 | DTN7.0780A076.SPK | 7,80 | 8 | 76 | 36 | 116 |
| DTN7.0800A076.SPE | 3047816 | DTN7.0800A076.SPK | 8,00 | 8 | 76 | 36 | 116 |
| DTN7.0810A087.SPE | 3047816 | DTN7.0810A087.SPK | 8,10 | 10 | 87 | 40 | 131 |
| DTN7.0820A087.SPE | 3047816 | DTN7.0820A087.SPK | 8,20 | 10 | 87 | 40 | 131 |
| DTN7.0840A087.SPE | 3047816 | DTN7.0840A087.SPK | 8,40 | 10 | 87 | 40 | 131 |
| DTN7.0850A087.SPE | 3047816 | DTN7.0850A087.SPK | 8,50 | 10 | 87 | 40 | 131 |
| DTN7.0860A087.SPE | 3047816 | DTN7.0860A087.SPK | 8,60 | 10 | 87 | 40 | 131 |
| DTN7.0870A087.SPE | 3047816 | DTN7.0870A087.SPK | 8,70 | 10 | 87 | 40 | 131 |
| DTN7.0880A087.SPE | 3047816 | DTN7.0880A087.SPK | 8,80 | 10 | 87 | 40 | 131 |
| DTN7.0900A087.SPE | 3047816 | DTN7.0900A087.SPK | 9,00 | 10 | 87 | 40 | 131 |
| DTN7.0910A095.SPE | 3047816 | DTN7.0910A095.SPK | 9,10 | 10 | 95 | 40 | 139 |
| DTN7.0920A095.SPE | 3047816 | DTN7.0920A095.SPK | 9,20 | 10 | 95 | 40 | 139 |
| DTN7.0930A095.SPE | 3047816 | DTN7.0930A095.SPK | 9,30 | 10 | 95 | 40 | 139 |
| DTN7.0940A095.SPE | 3047816 | DTN7.0940A095.SPK | 9,40 | 10 | 95 | 40 | 139 |
| DTN7.0950A095.SPE | 3047816 | DTN7.0950A095.SPK | 9,50 | 10 | 95 | 40 | 139 |
| DTN7.0970A095.SPE | 3047816 | DTN7.0970A095.SPK | 9,70 | 10 | 95 | 40 | 139 |
| DTN7.0980A095.SPE | 3047816 | DTN7.0980A095.SPK | 9,80 | 10 | 95 | 40 | 139 |
| DTN7.0990A095.SPE | 3047816 | DTN7.0990A095.SPK | 9,90 | 10 | 95 | 40 | 139 |
| DTN7.1000A095.SPE | 3047816 | DTN7.1000A095.SPK | 10,00 | 10 | 95 | 40 | 139 |
| DTN7.1020A106.SPE | 3047816 | DTN7.1020A106.SPK | 10,20 | 12 | 106 | 45 | 155 |
| DTN7.1050A106.SPE | 3047816 | DTN7.1050A106.SPK | 10,50 | 12 | 106 | 45 | 155 |
| DTN7.1080A106.SPE | 3047816 | DTN7.1080A106.SPK | 10,80 | 12 | 106 | 45 | 155 |
| DTN7.1100A106.SPE | 3047816 | DTN7.1100A106.SPK | 11,00 | 12 | 106 | 45 | 155 |
| DTN7.1120A114.SPE | 3047816 | DTN7.1120A114.SPK | 11,20 | 12 | 114 | 45 | 163 |
| DTN7.1150A114.SPE | 3047816 | DTN7.1150A114.SPK | 11,50 | 12 | 114 | 45 | 163 |
| DTN7.1180A114.SPE | 3047816 | DTN7.1180A114.SPK | 11,80 | 12 | 114 | 45 | 163 |
| DTN7.1200A114.SPE | 3047816 | DTN7.1200A114.SPK | 12,00 | 12 | 114 | 45 | 163 |
| DTN7.1220A133.SPE | 3047816 | DTN7.1220A133.SPK | 12,20 | 14 | 133 | 45 | 182 |
| DTN7.1250A133.SPE | 3047816 | DTN7.1250A133.SPK | 12,50 | 14 | 133 | 45 | 182 |
| DTN7.1270A133.SPE | 3047816 | DTN7.1270A133.SPK | 12,70 | 14 | 133 | 45 | 182 |
| DTN7.1300A133.SPE | 3047816 | DTN7.1300A133.SPK | 13,00 | 14 | 133 | 45 | 182 |
| DTN7.1350A133.SPE | 3047816 | DTN7.1350A133.SPK | 13,50 | 14 | 133 | 45 | 182 |
| DTN7.1400A133.SPE | 3047816 | DTN7.1400A133.SPK | 14,00 | 14 | 133 | 45 | 182 |
| DTN7.1420A152.SPE | 3047816 | DTN7.1420A152.SPK | 14,20 | 16 | 152 | 48 | 204 |
| DTN7.1450A152.SPE | 3047816 | DTN7.1450A152.SPK | 14,50 | 16 | 152 | 48 | 204 |
| DTN7.1500A152.SPE | 3047816 | DTN7.1500A152.SPK | 15,00 | 16 | 152 | 48 | 204 |
| DTN7.1550A152.SPE | 3047816 | DTN7.1550A152.SPK | 15,50 | 16 | 152 | 48 | 204 |
| DTN7.1600A152.SPE | 3047816 | DTN7.1600A152.SPK | 16,00 | 16 | 152 | 48 | 204 |
| DTN7.1650A171.SPE | 3047816 | DTN7.1650A171.SPK | 16,50 | 18 | 171 | 48 | 223 |
| DTN7.1700A171.SPE | 3047816 | DTN7.1700A171.SPK | 17,00 | 18 | 171 | 48 | 223 |
| DTN7.1750A171.SPE | 3047816 | DTN7.1750A171.SPK | 17,50 | 18 | 171 | 48 | 223 |
| DTN7.1800A171.SPE | 3047816 | DTN7.1800A171.SPK | 18,00 | 18 | 171 | 48 | 223 |
| DTN7.1850A190.SPE | 3047816 | DTN7.1850A190.SPK | 18,50 | 20 | 190 | 50 | 244 |
| DTN7.1900A190.SPE | 3047816 | DTN7.1900A190.SPK | 19,00 | 20 | 190 | 50 | 244 |
| DTN7.1950A190.SPE | 3047816 | DTN7.1950A190.SPK | 19,50 | 20 | 190 | 50 | 244 |
| DTN7.2000A190.SPE | 3047816 | DTN7.2000A190.SPK | 20,00 | 20 | 190 | 50 | 244 |
