Сверла DTN3 для обработки отверстий с максимальной глубиной 3xD1

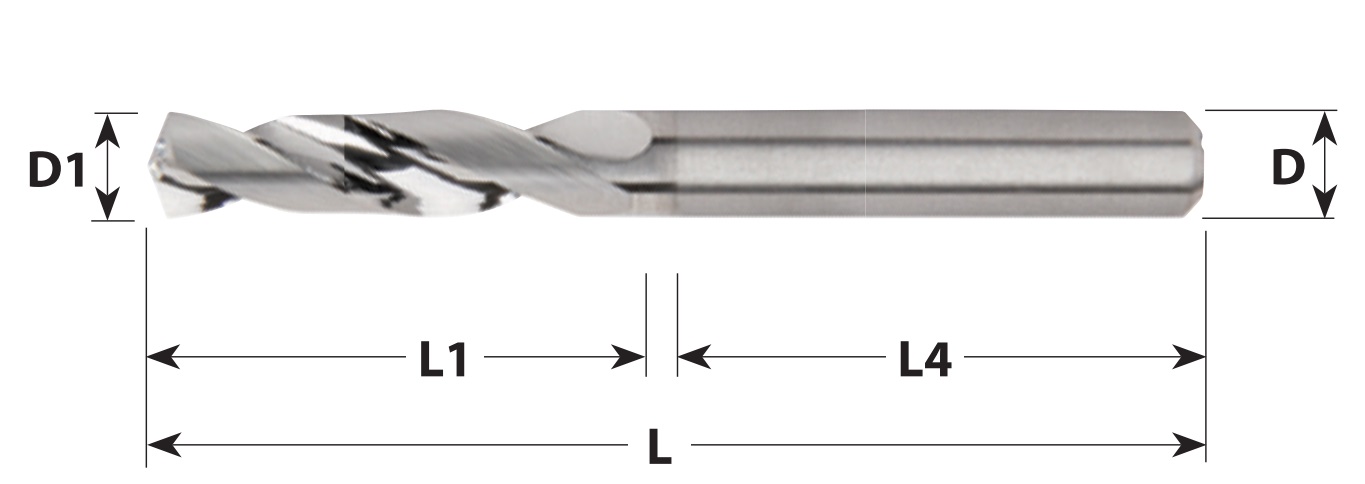

Схема
Описание

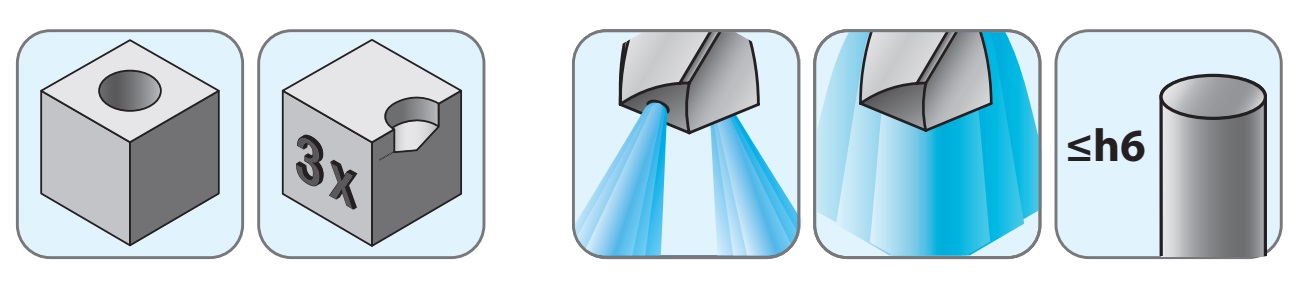

Спиральные сверла для обработки отверстий с максимальной глубиной 3×D1 в материалах группы N
• Угол при вершине 140°
• Поле допуска диаметра рабочей части: m7
• Исполнение с хвостовиком типа WELDON или Whistle Notch — по запросу
• Угол при вершине 140°
• Поле допуска диаметра рабочей части: m7
• Исполнение с хвостовиком типа WELDON или Whistle Notch — по запросу
Детализация
Для удобства переверните телефон
|
Без каналов для подачи СОЖ |
С каналами для подачи СОЖ |
Диаметр сверла, мм |
Диаметр хвостовика, мм |
Длина рабочей части, мм |
Длина хвостовика, мм |
Общая длина, мм |
|
| Обозначение | Реестровый номер | Обозначение | D1 | D | L1 | L4 | L |
| DTN3.0300A020.SPE | 3047808 | – | 3,00 | 6 | 20 | 36 | 62 |
| DTN3.0310A020.SPE | 3047808 | – | 3,10 | 6 | 20 | 36 | 62 |
| DTN3.0320A020.SPE | 3047808 | – | 3,20 | 6 | 20 | 36 | 62 |
| DTN3.0330A020.SPE | 3047808 | – | 3,30 | 6 | 20 | 36 | 62 |
| DTN3.0340A020.SPE | 3047808 | – | 3,40 | 6 | 20 | 36 | 62 |
| DTN3.0350A020.SPE | 3047808 | – | 3,50 | 6 | 20 | 36 | 62 |
| DTN3.0360A020.SPE | 3047808 | – | 3,60 | 6 | 20 | 36 | 62 |
| DTN3.0370A020.SPE | 3047808 | – | 3,70 | 6 | 20 | 36 | 62 |
| DTN3.0380A024.SPE | 3047808 | – | 3,80 | 6 | 24 | 36 | 66 |
| DTN3.0390A024.SPE | 3047808 | – | 3,90 | 6 | 24 | 36 | 66 |
| DTN3.0400A024.SPE | 3047808 | – | 4,00 | 6 | 24 | 36 | 66 |
| DTN3.0410A024.SPE | 3047808 | – | 4,10 | 6 | 24 | 36 | 66 |
| DTN3.0420A024.SPE | 3047808 | – | 4,20 | 6 | 24 | 36 | 66 |
| DTN3.0430A024.SPE | 3047808 | – | 4,30 | 6 | 24 | 36 | 66 |
| DTN3.0440A024.SPE | 3047808 | – | 4,40 | 6 | 24 | 36 | 66 |
| DTN3.0450A024.SPE | 3047808 | – | 4,50 | 6 | 24 | 36 | 66 |
| DTN3.0460A024.SPE | 3047808 | – | 4,60 | 6 | 24 | 36 | 66 |
| DTN3.0465A024.SPE | 3047808 | – | 4,65 | 6 | 24 | 36 | 66 |
| DTN3.0470A024.SPE | 3047808 | – | 4,70 | 6 | 24 | 36 | 66 |
| DTN3.0480A028.SPE | 3047808 | – | 4,80 | 6 | 28 | 36 | 66 |
| DTN3.0490A028.SPE | 3047808 | – | 4,90 | 6 | 28 | 36 | 66 |
| DTN3.0500A028.SPE | 3047808 | DTN3.0500A028.SPK | 5,00 | 6 | 28 | 36 | 66 |
| DTN3.0510A028.SPE | 3047808 | DTN3.0510A028.SPK | 5,10 | 6 | 28 | 36 | 66 |
| DTN3.0520A028.SPE | 3047808 | DTN3.0520A028.SPK | 5,20 | 6 | 28 | 36 | 66 |
| DTN3.0530A028.SPE | 3047808 | DTN3.0530A028.SPK | 5,30 | 6 | 28 | 36 | 66 |
| DTN3.0540A028.SPE | 3047808 | DTN3.0540A028.SPK | 5,40 | 6 | 28 | 36 | 66 |
| DTN3.0550A028.SPE | 3047808 | DTN3.0550A028.SPK | 5,50 | 6 | 28 | 36 | 66 |
| DTN3.0555A028.SPE | 3047808 | DTN3.0555A028.SPK | 5,55 | 6 | 28 | 36 | 66 |
| DTN3.0560A028.SPE | 3047808 | DTN3.0560A028.SPK | 5,60 | 6 | 28 | 36 | 66 |
| DTN3.0570A028.SPE | 3047808 | DTN3.0570A028.SPK | 5,70 | 6 | 28 | 36 | 66 |
| DTN3.0580A028.SPE | 3047808 | DTN3.0580A028.SPK | 5,80 | 6 | 28 | 36 | 66 |
| DTN3.0590A028.SPE | 3047808 | DTN3.0590A028.SPK | 5,90 | 6 | 28 | 36 | 66 |
| DTN3.0600A028.SPE | 3047808 | DTN3.0600A028.SPK | 6,00 | 6 | 28 | 36 | 66 |
| DTN3.0610A034.SPE | 3047808 | DTN3.0610A034.SPK | 6,10 | 8 | 34 | 36 | 79 |
| DTN3.0620A034.SPE | 3047808 | DTN3.0620A034.SPK | 6,20 | 8 | 34 | 36 | 79 |
| DTN3.0630A034.SPE | 3047808 | DTN3.0630A034.SPK | 6,30 | 8 | 34 | 36 | 79 |
| DTN3.0640A034.SPE | 3047808 | DTN3.0640A034.SPK | 6,40 | 8 | 34 | 36 | 79 |
| DTN3.0650A034.SPE | 3047808 | DTN3.0650A034.SPK | 6,50 | 8 | 34 | 36 | 79 |
| DTN3.0660A034.SPE | 3047808 | DTN3.0660A034.SPK | 6,60 | 8 | 34 | 36 | 79 |
| DTN3.0670A034.SPE | 3047808 | DTN3.0670A034.SPK | 6,70 | 8 | 34 | 36 | 79 |
| DTN3.0680A034.SPE | 3047808 | DTN3.0680A034.SPK | 6,80 | 8 | 34 | 36 | 79 |
| DTN3.0690A034.SPE | 3047808 | DTN3.0690A034.SPK | 6,90 | 8 | 34 | 36 | 79 |
| DTN3.0700A034.SPE | 3047808 | DTN3.0700A034.SPK | 7,00 | 8 | 34 | 36 | 79 |
| DTN3.0710A041.SPE | 3047808 | DTN3.0710A041.SPK | 7,10 | 8 | 41 | 36 | 79 |
| DTN3.0720A041.SPE | 3047808 | DTN3.0720A041.SPK | 7,20 | 8 | 41 | 36 | 79 |
| DTN3.0730A041.SPE | 3047808 | DTN3.0730A041.SPK | 7,30 | 8 | 41 | 36 | 79 |
| DTN3.0740A041.SPE | 3047808 | DTN3.0740A041.SPK | 7,40 | 8 | 41 | 36 | 79 |
| DTN3.0750A041.SPE | 3047808 | DTN3.0750A041.SPK | 7,50 | 8 | 41 | 36 | 79 |
| DTN3.0760A041.SPE | 3047808 | DTN3.0760A041.SPK | 7,60 | 8 | 41 | 36 | 79 |
| DTN3.0770A041.SPE | 3047808 | DTN3.0770A041.SPK | 7,70 | 8 | 41 | 36 | 79 |
| DTN3.0780A041.SPE | 3047808 | DTN3.0780A041.SPK | 7,80 | 8 | 41 | 36 | 79 |
| DTN3.0790A041.SPE | 3047808 | DTN3.0790A041.SPK | 7,90 | 8 | 41 | 36 | 79 |
| DTN3.0800A041.SPE | 3047808 | DTN3.0800A041.SPK | 8,00 | 8 | 41 | 36 | 79 |
| DTN3.0810A047.SPE | 3047808 | DTN3.0810A047.SPK | 8,10 | 10 | 47 | 40 | 89 |
| DTN3.0820A047.SPE | 3047808 | DTN3.0820A047.SPK | 8,20 | 10 | 47 | 40 | 89 |
| DTN3.0830A047.SPE | 3047808 | DTN3.0830A047.SPK | 8,30 | 10 | 47 | 40 | 89 |
| DTN3.0840A047.SPE | 3047808 | DTN3.0840A047.SPK | 8,40 | 10 | 47 | 40 | 89 |
| DTN3.0850A047.SPE | 3047808 | DTN3.0850A047.SPK | 8,50 | 10 | 47 | 40 | 89 |
| DTN3.0860A047.SPE | 3047808 | DTN3.0860A047.SPK | 8,60 | 10 | 47 | 40 | 89 |
| DTN3.0870A047.SPE | 3047808 | DTN3.0870A047.SPK | 8,70 | 10 | 47 | 40 | 89 |
| DTN3.0880A047.SPE | 3047808 | DTN3.0880A047.SPK | 8,80 | 10 | 47 | 40 | 89 |
| DTN3.0890A047.SPE | 3047808 | DTN3.0890A047.SPK | 8,90 | 10 | 47 | 40 | 89 |
| DTN3.0900A047.SPE | 3047808 | DTN3.0900A047.SPK | 9,00 | 10 | 47 | 40 | 89 |
| DTN3.0910A047.SPE | 3047808 | DTN3.0910A047.SPK | 9,10 | 10 | 47 | 40 | 89 |
| DTN3.0920A047.SPE | 3047808 | DTN3.0920A047.SPK | 9,20 | 10 | 47 | 40 | 89 |
| DTN3.0925A047.SPE | 3047808 | DTN3.0925A047.SPK | 9,25 | 10 | 47 | 40 | 89 |
| DTN3.0930A047.SPE | 3047808 | DTN3.0930A047.SPK | 9,30 | 10 | 47 | 40 | 89 |
| DTN3.0940A047.SPE | 3047808 | DTN3.0940A047.SPK | 9,40 | 10 | 47 | 40 | 89 |
| DTN3.0950A047.SPE | 3047808 | DTN3.0950A047.SPK | 9,50 | 10 | 47 | 40 | 89 |
| DTN3.0960A047.SPE | 3047808 | DTN3.0960A047.SPK | 9,60 | 10 | 47 | 40 | 89 |
| DTN3.0970A047.SPE | 3047808 | DTN3.0970A047.SPK | 9,70 | 10 | 47 | 40 | 89 |
| DTN3.0980A047.SPE | 3047808 | DTN3.0980A047.SPK | 9,80 | 10 | 47 | 40 | 89 |
| DTN3.0990A047.SPE | 3047808 | DTN3.0990A047.SPK | 9,90 | 10 | 47 | 40 | 89 |
| DTN3.1000A047.SPE | 3047808 | DTN3.1000A047.SPK | 10,00 | 10 | 47 | 40 | 89 |
| DTN3.1010A055.SPE | 3047808 | DTN3.1010A055.SPK | 10,10 | 12 | 55 | 45 | 102 |
| DTN3.1020A055.SPE | 3047808 | DTN3.1020A055.SPK | 10,20 | 12 | 55 | 45 | 102 |
| DTN3.1030A055.SPE | 3047808 | DTN3.1030A055.SPK | 10,30 | 12 | 55 | 45 | 102 |
| DTN3.1040A055.SPE | 3047808 | DTN3.1040A055.SPK | 10,40 | 12 | 55 | 45 | 102 |
| DTN3.1050A055.SPE | 3047808 | DTN3.1050A055.SPK | 10,50 | 12 | 55 | 45 | 102 |
| DTN3.1060A055.SPE | 3047808 | DTN3.1060A055.SPK | 10,60 | 12 | 55 | 45 | 102 |
| DTN3.1070A055.SPE | 3047808 | DTN3.1070A055.SPK | 10,70 | 12 | 55 | 45 | 102 |
| DTN3.1080A055.SPE | 3047808 | DTN3.1080A055.SPK | 10,80 | 12 | 55 | 45 | 102 |
| DTN3.1090A055.SPE | 3047808 | DTN3.1090A055.SPK | 10,90 | 12 | 55 | 45 | 102 |
| DTN3.1100A055.SPE | 3047808 | DTN3.1100A055.SPK | 11,00 | 12 | 55 | 45 | 102 |
| DTN3.1110A055.SPE | 3047808 | DTN3.1110A055.SPK | 11,10 | 12 | 55 | 45 | 102 |
| DTN3.1120A055.SPE | 3047808 | DTN3.1120A055.SPK | 11,20 | 12 | 55 | 45 | 102 |
| DTN3.1130A055.SPE | 3047808 | DTN3.1130A055.SPK | 11,30 | 12 | 55 | 45 | 102 |
| DTN3.1140A055.SPE | 3047808 | DTN3.1140A055.SPK | 11,40 | 12 | 55 | 45 | 102 |
| DTN3.1150A055.SPE | 3047808 | DTN3.1150A055.SPK | 11,50 | 12 | 55 | 45 | 102 |
| DTN3.1160A055.SPE | 3047808 | DTN3.1160A055.SPK | 11,60 | 12 | 55 | 45 | 102 |
| DTN3.1170A055.SPE | 3047808 | DTN3.1170A055.SPK | 11,70 | 12 | 55 | 45 | 102 |
| DTN3.1180A055.SPE | 3047808 | DTN3.1180A055.SPK | 11,80 | 12 | 55 | 45 | 102 |
| DTN3.1190A055.SPE | 3047808 | DTN3.1190A055.SPK | 11,90 | 12 | 55 | 45 | 102 |
| DTN3.1200A055.SPE | 3047808 | DTN3.1200A055.SPK | 12,00 | 12 | 55 | 45 | 102 |
| DTN3.1220A060.SPE | 3047808 | DTN3.1220A060.SPK | 12,20 | 14 | 60 | 45 | 107 |
| DTN3.1250A060.SPE | 3047808 | DTN3.1250A060.SPK | 12,50 | 14 | 60 | 45 | 107 |
| DTN3.1270A060.SPE | 3047808 | DTN3.1270A060.SPK | 12,70 | 14 | 60 | 45 | 107 |
| DTN3.1300A060.SPE | 3047808 | DTN3.1300A060.SPK | 13,00 | 14 | 60 | 45 | 107 |
| DTN3.1350A060.SPE | 3047808 | DTN3.1350A060.SPK | 13,50 | 14 | 60 | 45 | 107 |
| DTN3.1370A060.SPE | 3047808 | DTN3.1370A060.SPK | 13,70 | 14 | 60 | 45 | 107 |
| DTN3.1400A060.SPE | 3047808 | DTN3.1400A060.SPK | 14,00 | 14 | 60 | 45 | 107 |
| DTN3.1420A065.SPE | 3047808 | DTN3.1420A065.SPK | 14,20 | 16 | 65 | 48 | 115 |
| DTN3.1450A065.SPE | 3047808 | DTN3.1450A065.SPK | 14,50 | 16 | 65 | 48 | 115 |
| DTN3.1470A065.SPE | 3047808 | DTN3.1470A065.SPK | 14,70 | 16 | 65 | 48 | 115 |
| DTN3.1500A065.SPE | 3047808 | DTN3.1500A065.SPK | 15,00 | 16 | 65 | 48 | 115 |
| DTN3.1520A065.SPE | 3047808 | DTN3.1520A065.SPK | 15,20 | 16 | 65 | 48 | |
